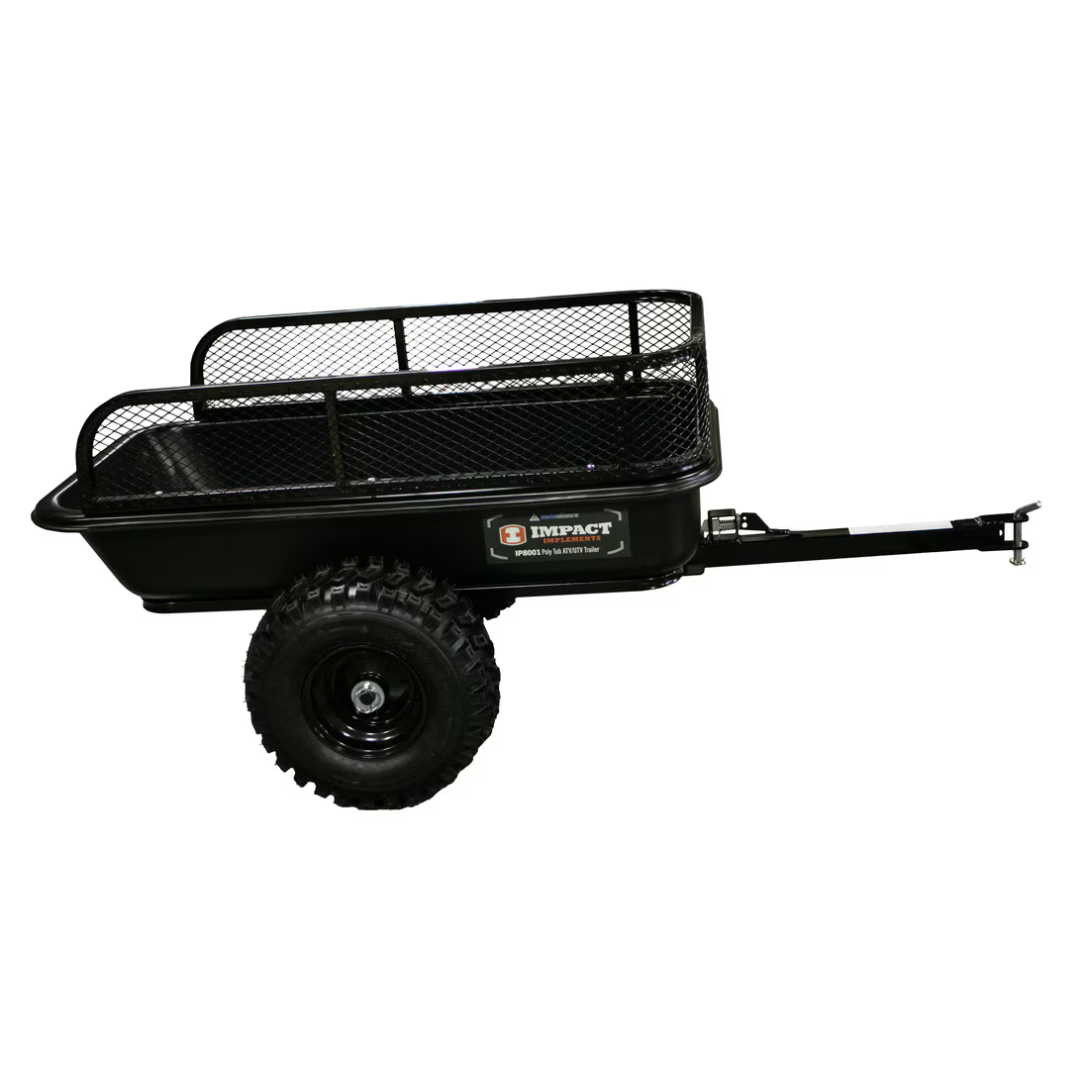

ATV/UTV Utility Trailer IMPACT IMPLEMENTS™ 1500lb

IMPACT IMPLEMENTS heavy-duty utility and hauling trailer turns your ATV, UTV or lawn tractor into an all-purpose hauling machine. Hauling 1,500lbs with a 15 cu. ft load capacity, this tilt bed, dump cart is perfect for hauling firewood, yard projects, hunting, ice fishing, etc! The rigid hitch design features an up/down pivot allowing the trailer to roll easily over snow banks, ice, rocks and logs. The hitch attaches to the pin paddle on any machine (ATV, UTV, SxS and snowmobile) with a single pin.

Installation Instructions

Assembly Video

Dimension File

Uses
- ATV
- UTV
- SxS
- Snowmobiles
- Garden Tractors
- any machine with a pin paddle attachment already installed

Features:
- Improved release latch engineering
- Max Speed 10 mph (not road compatible)

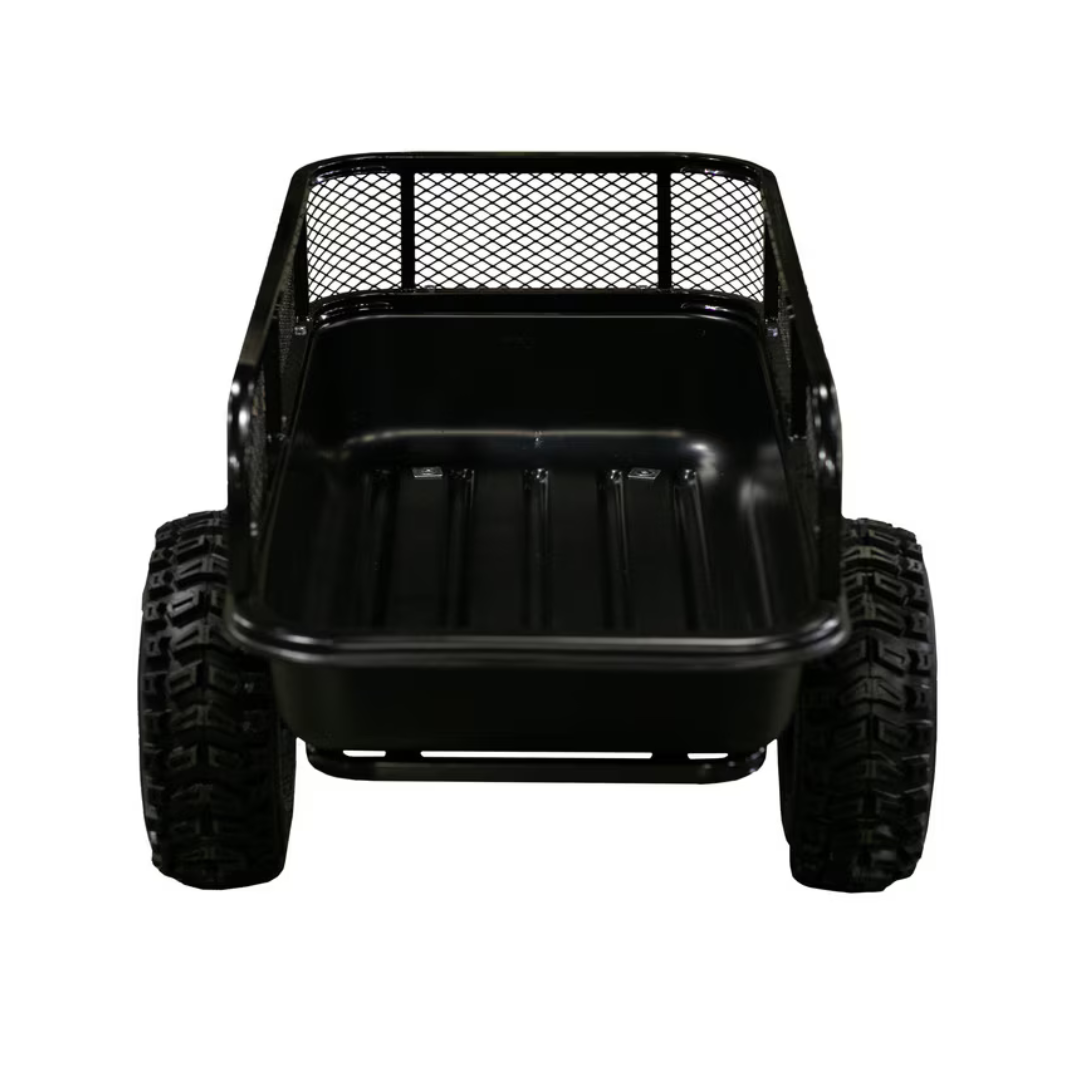

- High impact, polyethylene tub - poly tub (USA made) won't rust, dent or corrode
- 15 cubic ft. hauling capacity; 1,500lb load capacity

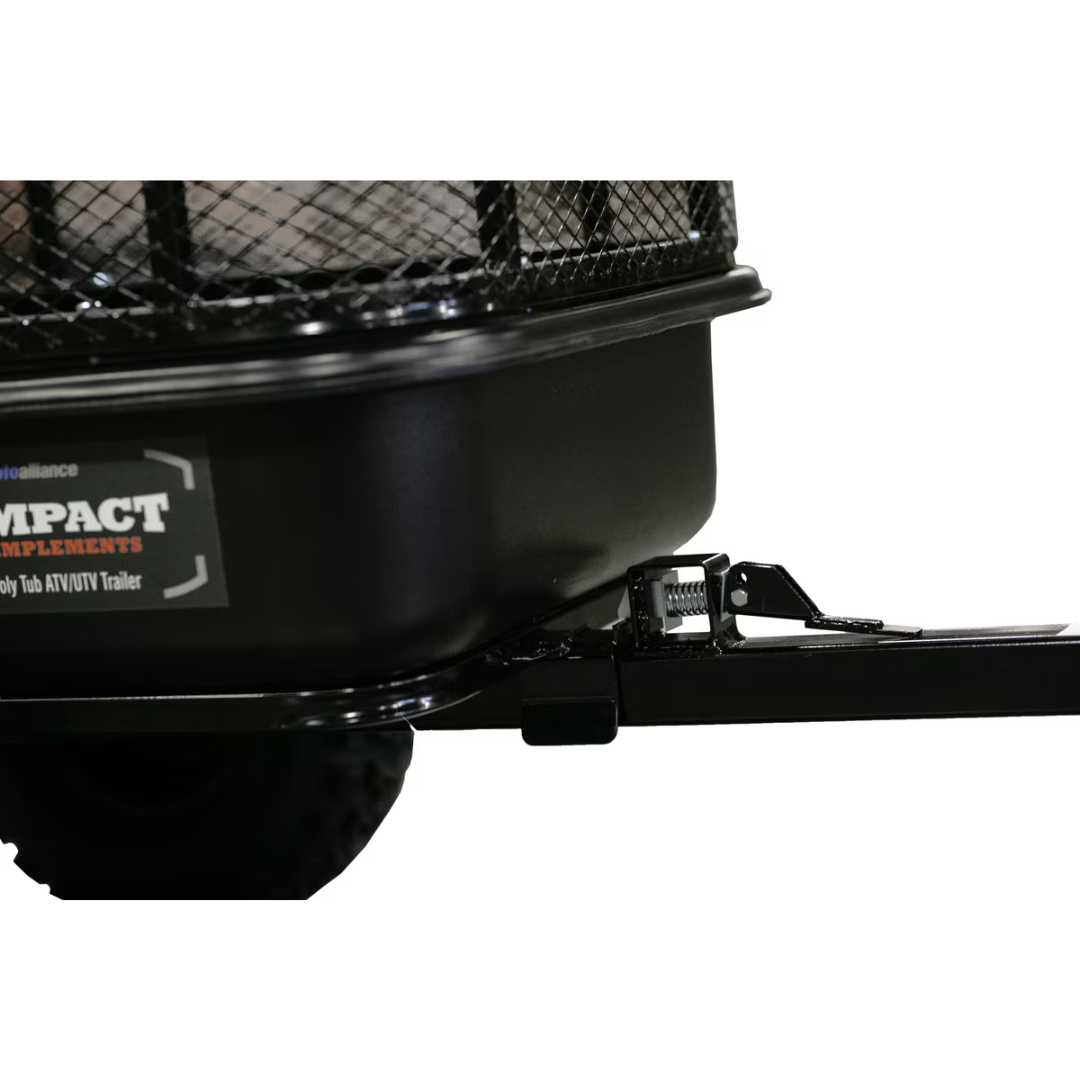

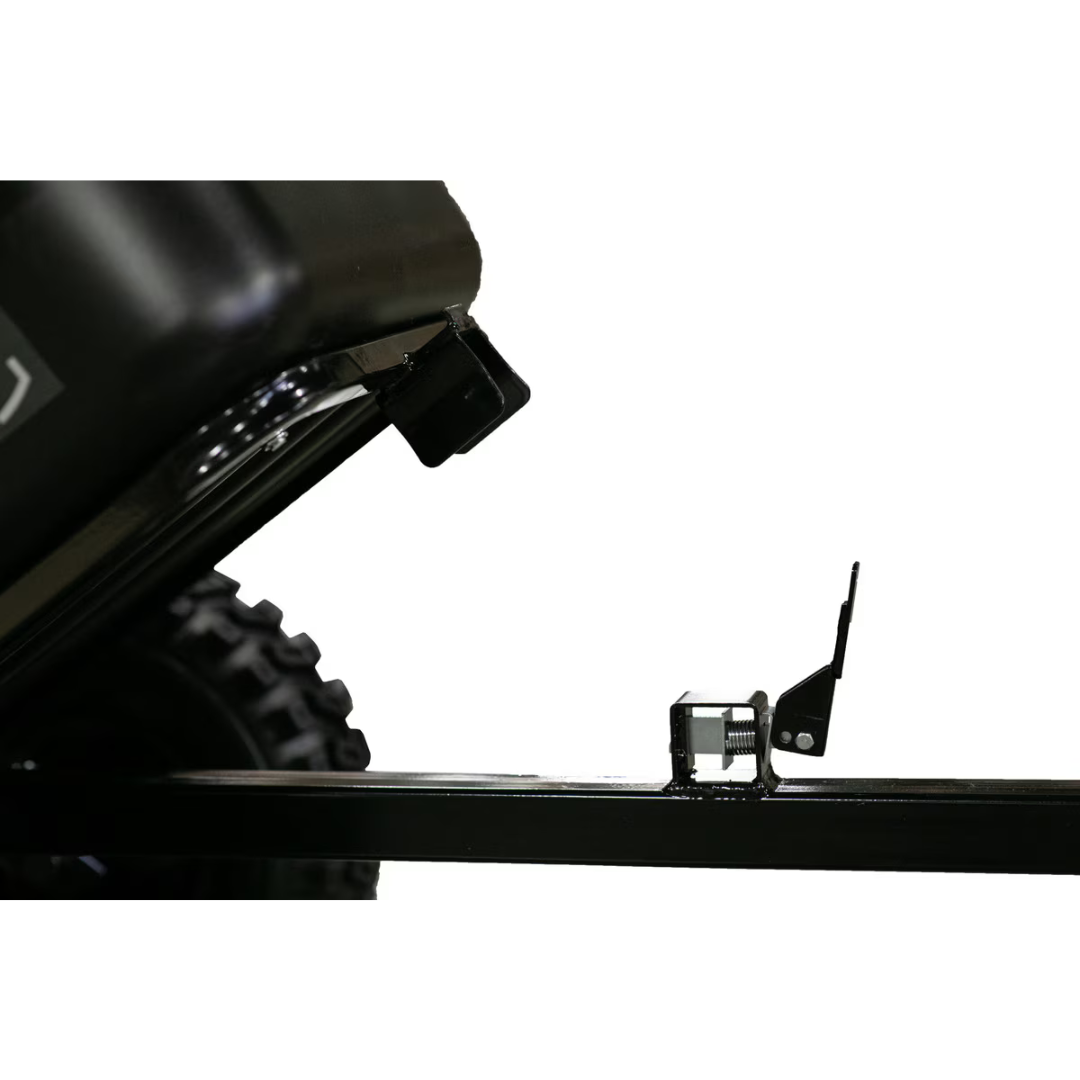

- Easy, quick release tipper latch and tilt trailer bed for easy loading and unloading
- Pass-through axle provides extra ground clearance

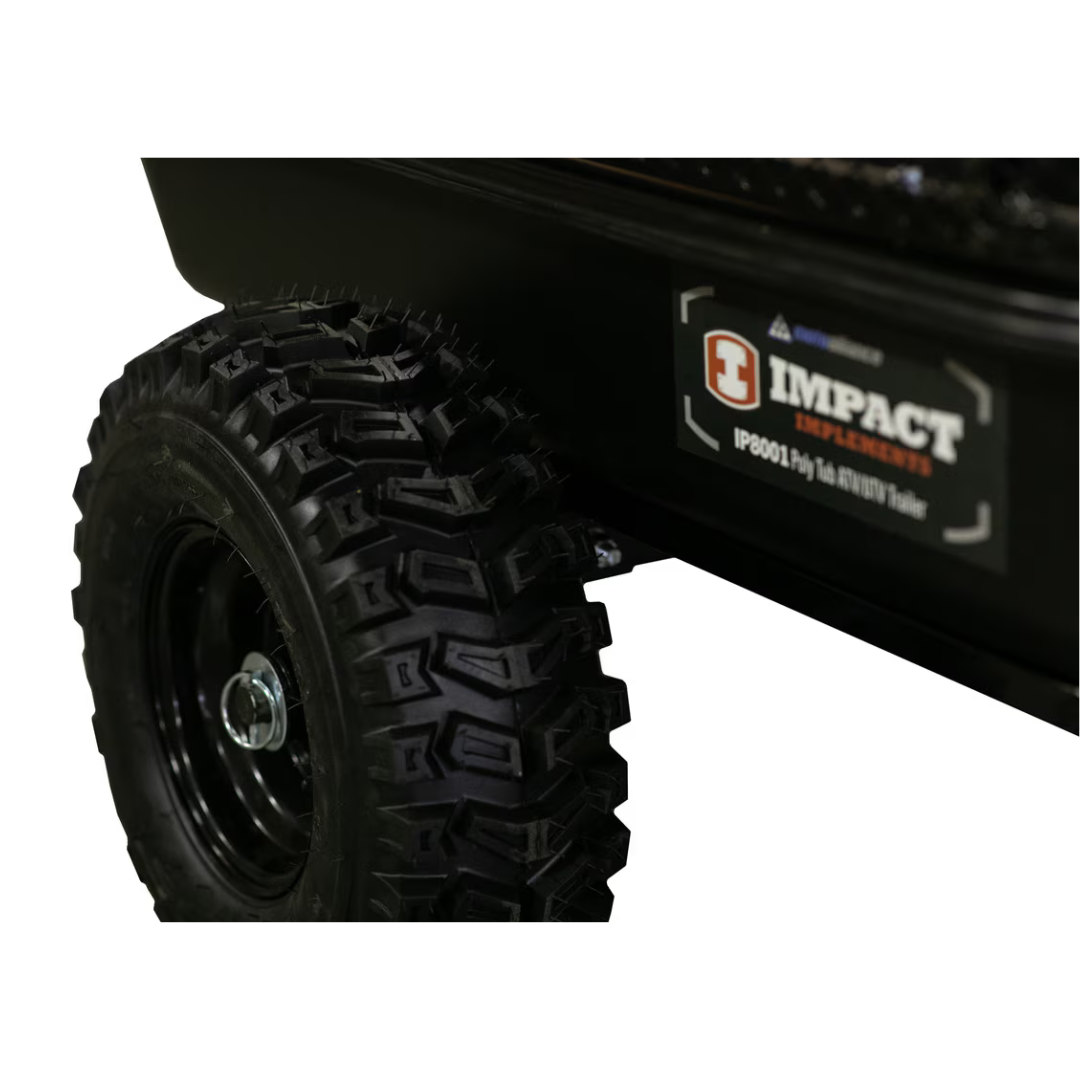

- Rugged wide-track tires for easy maneuverability over all types of terrain
- Sealed wheel bearings for easy maintenance and long life
- All steel square tube constructed of 11-gauge steel with powder coat finish
- Removable, steel mesh side rails are constructed of black, powder coated 16-gauge steel
- Pin style hitch (actual hitch on machine not included)
- Manufacturer Warranty

Specs:
- Assembled Dimensions (Tub, Hitch & Tires):  80.5” (L) x 42.5” (W) x 30” (H)
- Tub Alone - 52” (L) x 24.5” (W) x 9” (H)
- Weight - 120lbs
- Axel - 1"
- Ground Clearance - 12"
- Tires - 18" x 8" 4-ply
- Rails 8.7" (H)
- Poly Tub 8" (H)
