Raising and lowering a disc or blade by hand gets old fast. A hydraulic ATV implement lift lets you do it with a switch. The Impact Implements Patented HD One-Point Lift System mounts in a 2" receiver and turns your ATV, UTV or lawn tractor into an all-purpose work machine for food plots, gardens, driveways and trails.
What the HD One-Point Lift System does
This is a heavy-duty hydraulic lift that sits between your machine and the implement. The hydraulic pump is wired through your machine's onboard electrical system and runs from an up/down control switch. Implements go on and off with a single hitch pin, and the lift is heavy-duty enough to raise heavier implements well off the ground for long travel between work areas.
The design uses a patented ground engagement angle intended to get full use out of every implement.
Key features of the hydraulic ATV implement lift
- Heavy-duty steel construction (SKU IP4436_BK_HYPro)
- Approximately 1,100 lbs of pushing force and 800 lbs of pulling force
- Hydraulic lift with 10" of adjustment
- Pump amp draw of 5A to 30A, depending on load
- Single hitch pin (included) for quick and easy accessory changes
- Requires a 2" hitch receiver (not included) installed on the machine
Who it is for and what it fits
The HD One-Point Lift is listed for ATVs, UTVs, side-by-sides, garden tractors and lawn tractors. It is a good fit for landowners and food plotters who plan to switch between several implements, or who travel some distance between plots and want implements carried well off the ground. Because the pump draws 5A to 30A depending on load, make sure your machine's electrical system is in good shape before wiring it in.

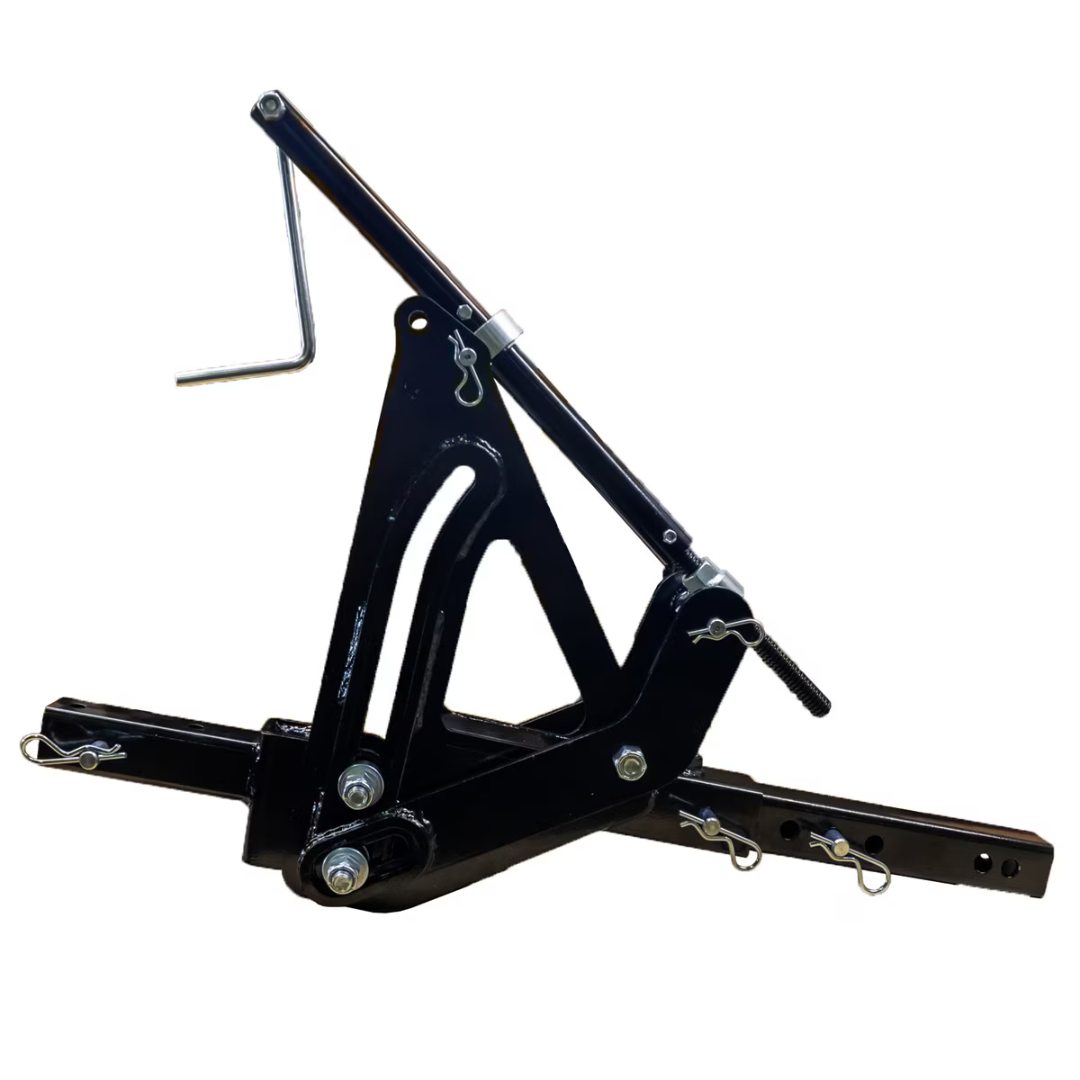

If you prefer a simpler setup without wiring, the Impact Implements manual One-Point Lift System uses a manual crank for fine adjustments instead of hydraulics.
Implements that work with the HD lift
The lift is the mounting point for the whole Impact Implements line. Popular pairings include:
- The 4.5 ft ATV/UTV disc plow / harrow for breaking ground and chopping weeds
- The cultipacker with weight tray for firming a seed bed after broadcasting
- The landscape rake, 52" blade with box ends, cultivator and middle buster
See the full lineup in our Impact Implements collection.
How to install and use it
- Check your receiver. Your machine needs a 2" hitch receiver installed.
- Mount and wire. Slide the lift into the receiver, then wire the pump through the onboard electrical system with the up/down switch where you can reach it. Follow the manufacturer's instructions.
- Pin on an implement. Each implement attaches with the single included hitch pin.
- Set depth. Use the switch to lower the implement into the ground and fine-tune within the 10" range.
- Raise for travel. Lift the implement clear before crossing roads, ditches or long stretches.
Using the HD lift for food plots
A common food plot sequence is disc, broadcast, then pack. With the HD lift, you can swap from the Impact Implements disc harrow to the cultipacker with one pin. Then plant a fall blend like Tecomate Max-Attract or a perennial such as Tecomate King Ladino White Clover. Browse every option in our food plot seed collection.
Frequently asked questions
Does the hydraulic ATV implement lift need a receiver hitch?
Yes. It requires a 2" hitch receiver (not included) installed on the ATV, UTV or lawn tractor.
How is the lift powered?
The hydraulic pump is wired through the machine's onboard electrical system and runs with an up/down control switch. Amp draw is 5A to 30A depending on load.
How much adjustment does it have?
The hydraulic lift provides 10" of adjustment, with approximately 1,100 lbs of pushing force and 800 lbs of pulling force.
Want switch-operated control over every implement? Get the details on the Impact Implements HD hydraulic One-Point Lift System and build your setup. Questions? Contact us.
