An ATV 1-point lift is the piece that lets a four-wheeler or side-by-side pull real ground-working implements. The Impact Implements manual One-Point Lift System slides into a 2" receiver and gives you a quick-attach mounting point for discs, rakes, blades and more on your ATV, UTV, garden tractor or lawn tractor.
What the manual One-Point Lift System is

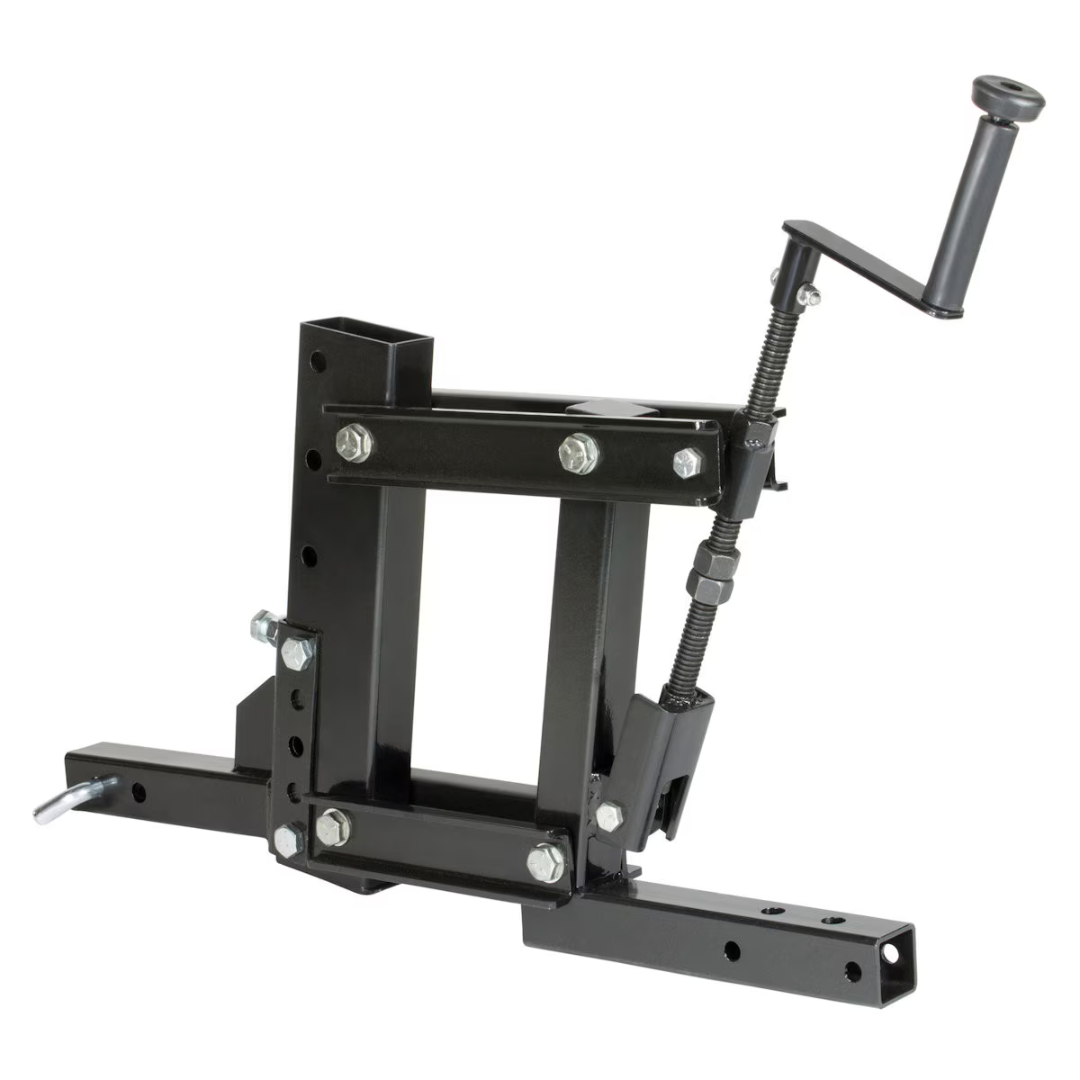

The MotoAlliance Impact Implements ATV/UTV Tractor 1-Point Lift (SKU IP4431_BK) is a heavy-duty hitch-mounted lift with manual lift-and-lower adjustment. A crank gives fine control over implement height, and each implement connects with a single hitch pin, so changing from one job to the next is quick. It is meant for tasks such as leveling, plowing, cultivating, aerating and more.
Key features of this ATV 1-point lift
- Heavy-duty 14-gauge tube steel construction
- Four reinforced linkage arms and a larger vertical riser for added strength
- Additional gusset and mounting holes for greater height adjustments
- Manual crank/lift for an additional 10 inches of fine adjustment
- Three assembly positions for different implement starting positions
- Single hitch pin (included) for quick accessory changes
- Requires a 2" hitch receiver (not included)
- Weighs only 48 lbs
What it fits
The manual One-Point Lift is compatible with ATVs, UTVs, side-by-sides, garden tractors and lawn tractors, as long as the machine has a 2" hitch receiver installed. At 48 lbs, it is easy to handle when you take it on and off the machine. Because the lift is manual, there is no wiring to your machine's electrical system.
If you want push-button control instead, the Impact Implements Patented HD One-Point Lift System uses a hydraulic pump with an up/down switch and 10" of hydraulic adjustment.
Implements this lift carries
The manual lift provides a mounting point for the Impact Implements line:
- 52" plow blade with box ends for grading drives and leveling dirt
- 62" landscape rake with tipper latch for trails, brush and soil prep
- Cultivator with spring steel tines for secondary tillage
- Disc plow / harrow for breaking ground in food plots and gardens
- Middle buster for opening furrows and laying off rows
- Cultipacker with weight tray for firming seed beds
Browse them together in our Impact Implements collection.
Setup and use tips
- Pick an assembly position. The three assembly positions change where the implement starts; choose the one that suits your machine's receiver height.
- Use the crank for depth. The manual crank gives up to 10 more inches of fine adjustment, so you can set how hard a disc or blade bites.
- Start shallow. Make a first pass light, then lower for following passes, especially in hard or rooty ground.
- Re-check pins and bolts after the first few hours of use.
Building food plots with an ATV 1-point lift
With a lift and a few implements, a small plot can be worked with the machine you already own. A typical order: disc to break the soil, broadcast seed, then cultipack to press it in. Fall blends like Tecomate Greenfield and perennials like Tecomate King Ladino White Clover both call for shallow planting, which is exactly what a cultipacker helps with. See more choices in our food plot seed collection.
Frequently asked questions
What do I need to mount the ATV 1-point lift?
A 2" hitch receiver (not included) installed on your ATV, UTV, garden tractor or lawn tractor. The single hitch pin for attaching implements is included.
How much does the manual lift weigh?
The lift weighs 48 lbs.
How do I adjust implement height?
Use the manual crank for up to 10 additional inches of fine adjustment, plus the extra mounting holes and three assembly positions for the starting height.
Ready to put your ATV or UTV to work? Get full details on the Impact Implements manual One-Point Lift System and start building your implement lineup. Questions? Contact us.
